Reinforcements and fixing elements

10VAT101 10066

INTERNAL ANGULAR REINFORCEMENT FOR...

Service door

10VAT103 10068

INTERNAL ANGULAR REINFORCEMENT FOR...

Service door

10VAT104 10069

INTERNAL ANGULAR REINFORCEMENT FOR...

To & fro

10VAT001 10065

INTERNAL ANGULAR REINFORCEMENT FOR...

500TN GV5 240AM 240S 480S 480ST 480PT 450PGV

10VAT002 10064

INTERNAL ANGULAR REINFORCEMENT FOR...

603LWT 480TN 480LT ATMC 450GV Wallet Vertical

10VAT003 10063

INTERNAL ANGULAR REINFORCEMENT FOR...

604LWT 740LWT 480LWT Wallet Vertical LWT

10VAT004

INTERNAL ANGULAR REINFORCEMENT FOR...

750LWT

06SPD040 15011

PLASTIC STIFF SPACER FOR DOOR TO FOAM...

Service door To & fro

06SPD070 15012

PLASTIC STIFF SPACER FOR DOOR TO FOAM...

500TN GV5 540TN 240AM 240S 480S 480ST 480PT 450PGV

06SPD090 15013

PLASTIC STIFF SPACER FOR DOOR TO FOAM...

603LWT 480TN 480LT ATMC 450GV Vertical Wallet

06SPD120 15014

PLASTIC STIFF SPACER FOR DOOR TO FOAM...

604LWT 740LWT Vertical LWT

06SPD140

PLASTIC STIFF SPACER FOR DOOR TO FOAM...

750LWT

16COC001 16025

GALVANIZED STEEL PLATE FOR HINGE FIXING...

Service door

05ANS022

ALUMINIUM ANGLE FOR SERVICE DOOR FRAME...

Service door

05ANS023

PLASTIC ANGLE FOR SERVICE DOOR FRAME...

Service door

26IFI001

PIN Ø8 L=250 WITH THREADED END FOR DOOR...

Service door 2b

26IFI002

PIN Ø8 L=350 WITH THREADED END FOR DOOR...

Service door 2b

26IFI006

PIN Ø8 L=800 WITH THREADED END FOR DOOR...

Service door 2b

15GIU002 15016

RIGHT JOINT FOR FRAME 110 WITH...

To&Fro 500TN 540TN GV5 603LWT 604LWT 360FLS 450GV 480PGV 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

15GIU003 15017

LEFT JOINT FOR FRAME 110 WITH...

To&Fro 500TN 540TN GV5 603LWT 604LWT 360FLS 450GV 480PGV 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

16PIT002 16023

GALVANIZED STEEL PLATE FOR FRAME 110...

To&Fro 500TN 540TN GV5 603LWT 604LWT 360FLS 450GV 480PGV 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

05ANS001 15026

PLASTIC ANGLE FOR SIDE FRAME JOIN

To&Fro 500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

05ANP001 15027

PLASTIC ANGLE FOR COUNTERFRAME JOIN

To&Fro 500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

25TIO055 16026

THREADED SLEEVE M6 L=55 FOR FRAME...

To&Fro 240AM 240S 360LS 480ST

25TIO075 16027

THREADED SLEEVE M6 L=75 FOR FRAME...

To&Fro 240AM 240S 360LS 480ST

25TIO095 16028

THREADED SLEEVE M6 L=95 FOR FRAME...

To&Fro 240AM 240S 360LS 480ST

15VAR150 15055

PLASTIC PLUG WITH INTERNAL THREAD M12...

500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

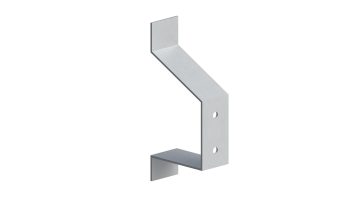

12VAR201

FIXING BRACKET FOR FLAT FRAME IN MASONRY

To&Fro 500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

16PIC001 16017

GALVANIZED STEEL PLATE FOR HINGE FIXING...

500TN GV5

16PIC020

GALVANIZED STEEL PLATE FOR ADJUSTABLE...

500TN GV5 603LWT 604LWT 740LWT 745LWT

16PIC002 16018

GALVANIZED STEEL PLATE FOR HINGE FIXING...

603LWT

16PIC003 16019

GALVANIZED STEEL PLATE FOR HINGE FIXING...

604LWT 740LWT 745LWT 750LWT

15GIU102 15018

RIGHT JOINT FOR FRAME 140 WITH...

740LWT 480LWT ATMC Vertical Wallet

15GIU103 15019

LEFT JOINT FOR FRAME 140 WITH...

740LWT 480LWT ATMC Vertical Wallet

16PIT001 16022

GALVANIZED STEEL PLATE FOR FRAME 140...

480PT 480TN 480LT 480LBT 480PGV 450GV 500TN 540TN,603LWT 604LWT 745LWT 740LWT 750LWT GV5 Vertical

05ANP100 15029

PLASTIC ANGLE FOR HEATING CABLE SUPPORT...

740LWT 745LWT 750LWT 480LWT 485LWT 490LWT Vertical LWT

25TIN016 15046

NYLON TENSION-ROD M12 L=160

240AM 240S 360LS 360FLS 450GV 480PGV 480ATMC 480ST 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

25TIN023 15047

NYLON TENSION-ROD M12 L=230

240AM 240S 360LS 360FLS 450GV 480PGV 480ATMC 480ST 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

25TIN030 15045

NYLON TENSION-ROD M12 L=300

240AM 240S 360LS 360FLS 450GV 480PGV 480ATMC 480ST 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

25TIN050 15038

NYLON THREADED ROD M12 L=500

24FIS001 15049

PLASTIC WASHER

500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

25TID012 15048

NUT FOR NYLON TENSION-ROD M12

500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

16COS004 16014

PLASTIC FIXING PLATE 60x40x8 WITH...

240AM 240S 360LS 360FLS 450GV 480PGV 480ST 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT

16COS005 16012

PLASTIC FIXING PLATE 90x40x8 WITH...

480LTB 480LWT 485LWT 490LWT

16COS003 16013

PLASTIC FIXING PLATE 65X40X10 WITH...

360LS 360FLS 450GV 480PGV 480ST 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT

16COS002 16011

PLASTIC FIXING PLATE 120x70x10 WITH...

03ZIL003

GALVANIZED INTERNAL ANGULAR...

360

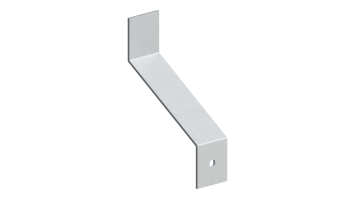

12VAR202

FIXING BRACKET WITH HOLE M8 FOR MASONRY

500TN 540TN GV5 603LWT 604LWT 740LWT 745LWT 750LWT 360FLS 450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT Vertical

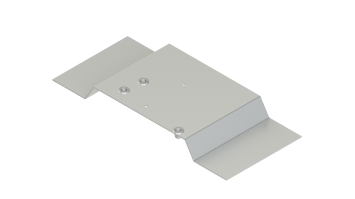

16PIS102

FIXING PLATE WITH INSERTS FOR INTERNAL...

450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT

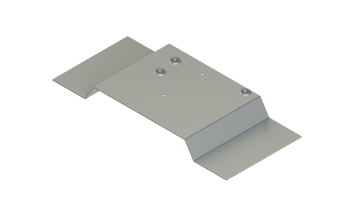

16PIS103

FIXING PLATE WITH INSERTS FOR INTERNAL...

450GV 480PGV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT

16COS008

FIXING PLATE WITH INSERTS FOR EXTERNAL...

480PGV 480PT

16COS006 16041

FIXING PLATE FOR INTERNAL LEVER HANDLE...

450GV 480ATMC 480PT 480TN 480LT 480LTB 480LWT 485LWT 490LWT

16PIT004 16024

GALVANIZED PLATE FOR THREADED HOLE M8

480ST

24GHI800

REVERSIBLE INTERNAL REINFORCEMENT...

Vertical

24GHI801

INTERNAL REINFORCEMENT BRACKET FOR...

Vertical

24GHI802

INTERNAL REINFORCEMENT BRACKET FOR...

Vertical

24GHI803

EXTERNAL REINFORCEMENT BRACKET FOR...

Vertical

24GHI804

EXTERNAL REINFORCEMENT BRACKET FOR...

Vertical

24GHI805

SUPPORT PLATE FOR VERTICAL SLIDING DOOR...

Vertical

24GHI806

SUPPORT PLATE FOR VERTICAL SLIDING DOOR...

Vertical

12CEL057

ANGLE FOR COLDROOM EDGE PROFILE FOR...

COLD ROOM TN

13CEL010

ANGLE FOR COLDROOM EDGE PROFILE FOR...

COLD ROOM BT

16CEL001

GALVANIZED PLATE L=2000 FOR COLDROOM...

COLD ROOM BT

06ALT153 15025

MALE HOOK FOR COLDROOM PANEL FIXING

COLD ROOM TN COLD ROOM BT
